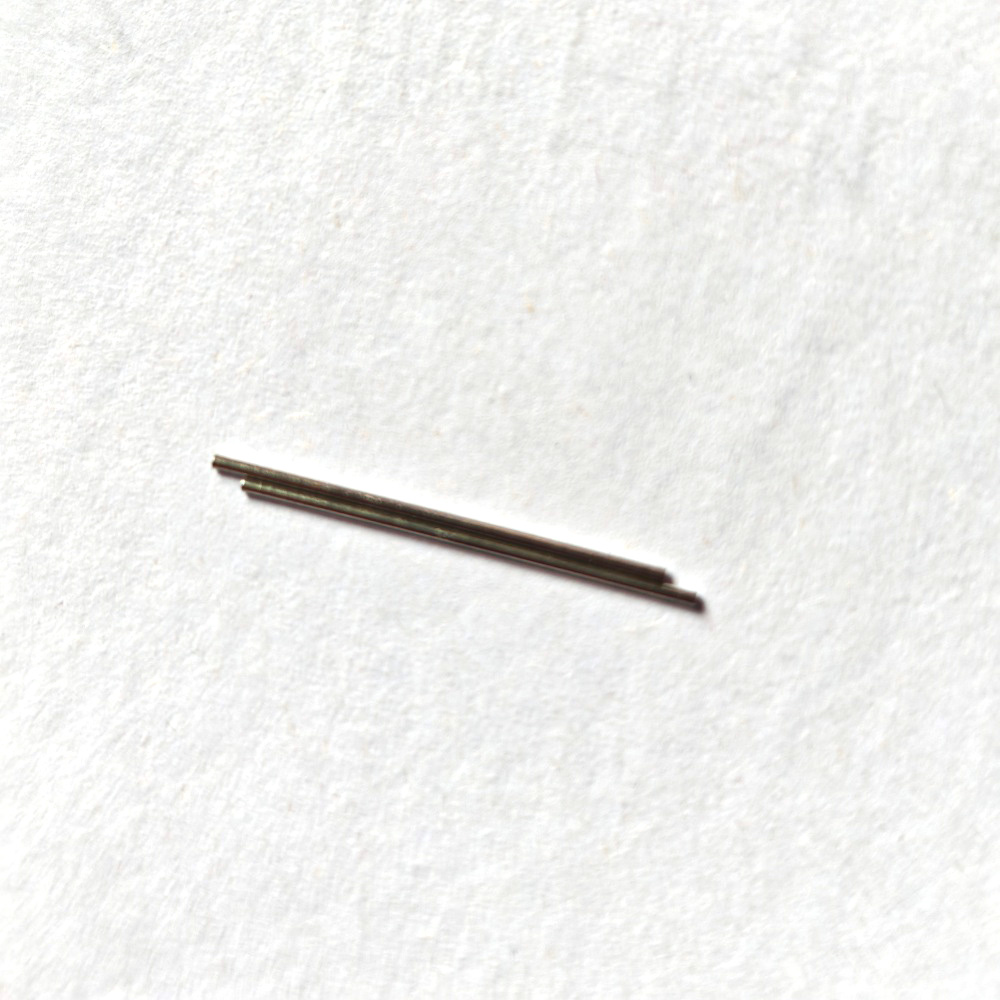

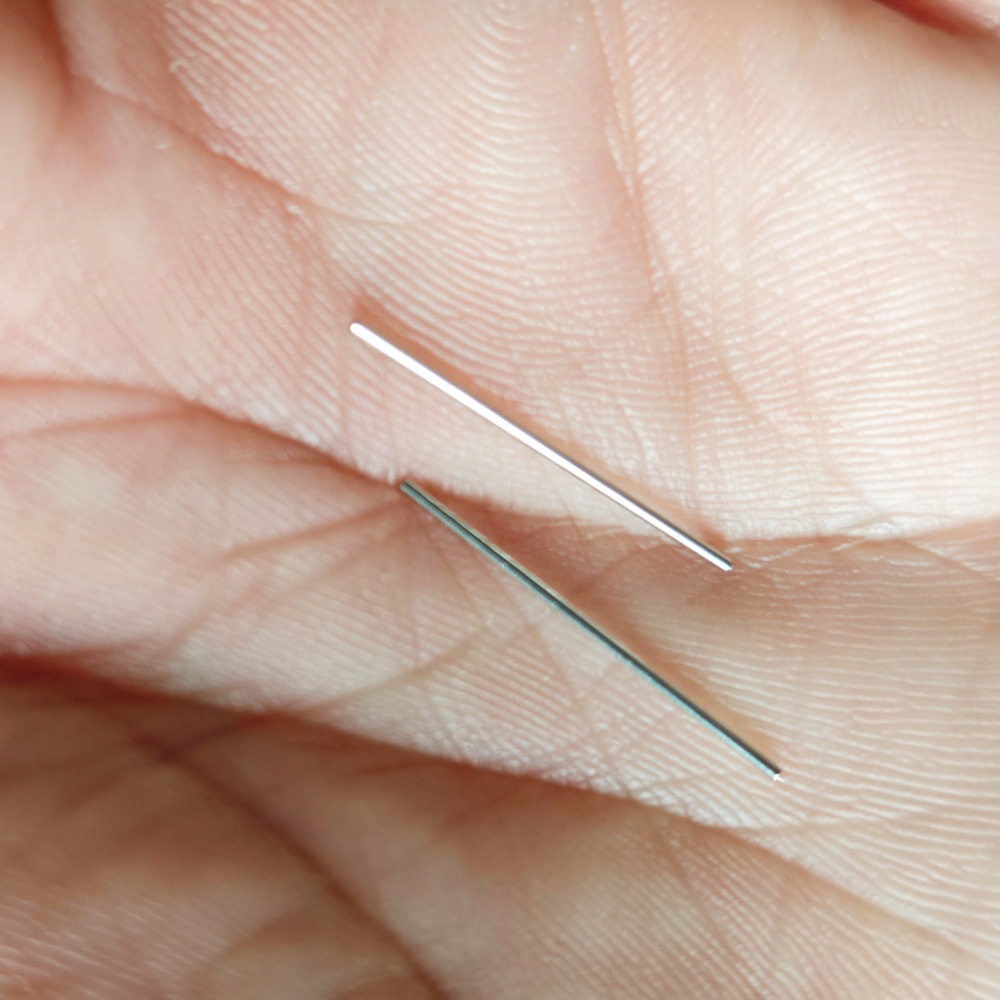

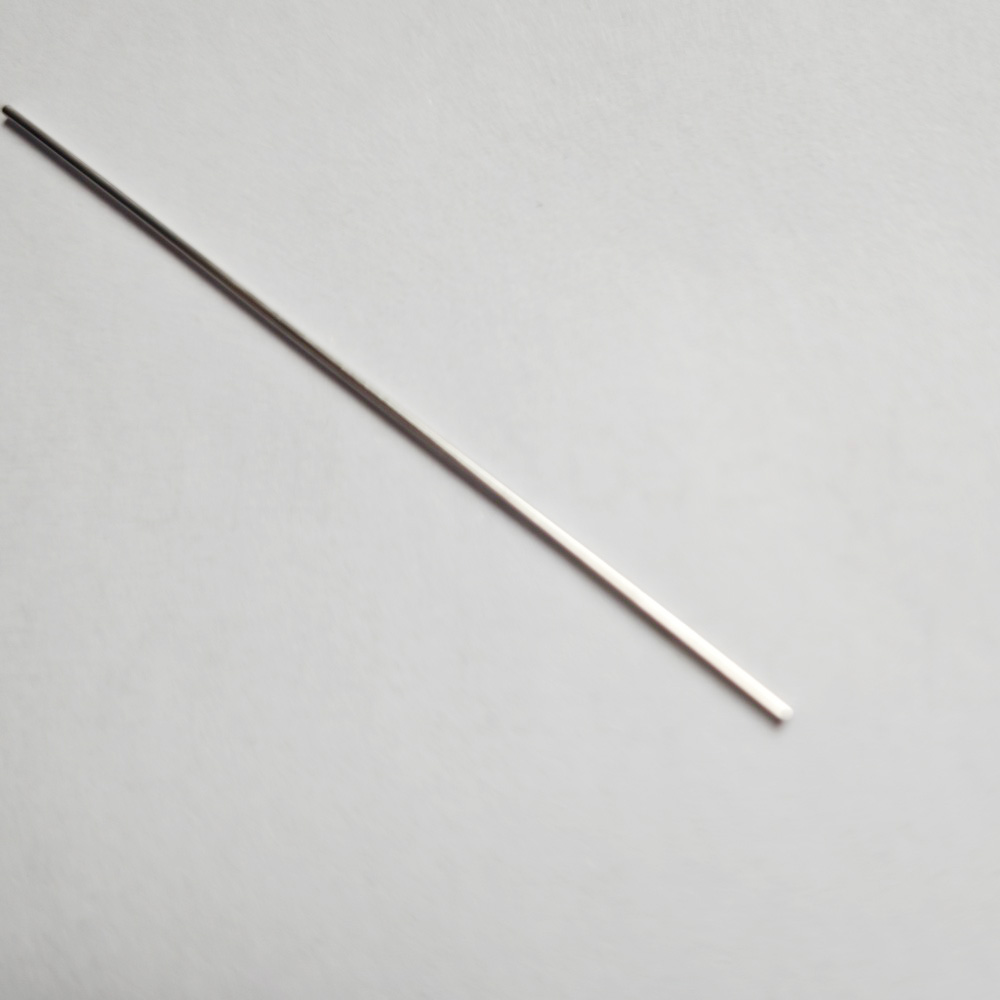

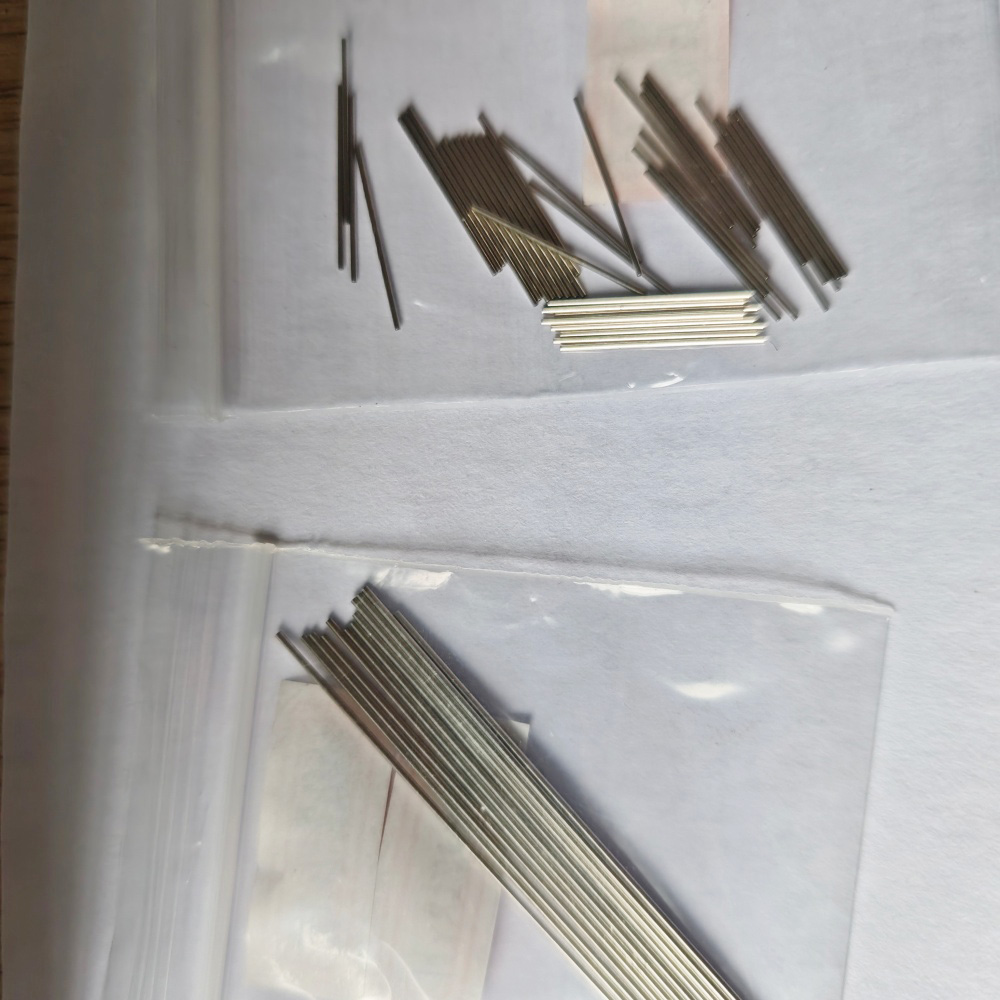

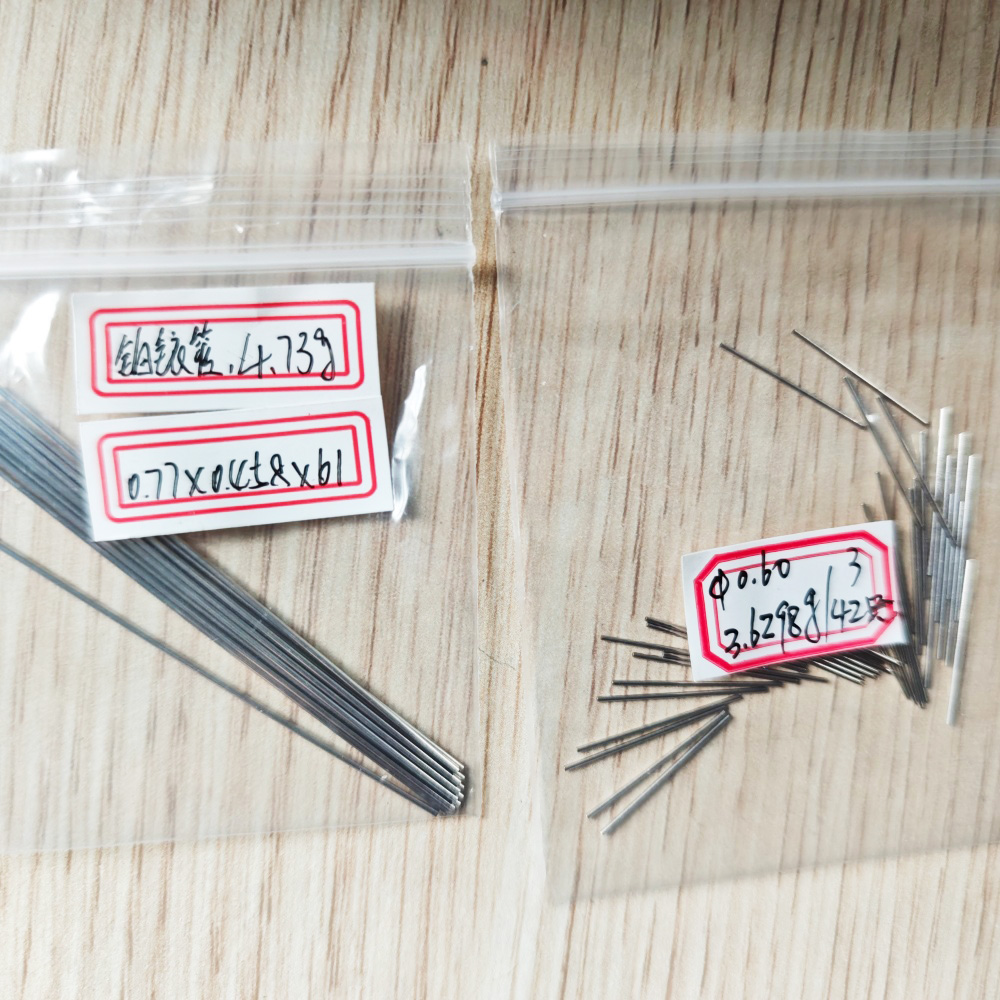

Platinum-iridium tubes are among the most durable and stable materials used in modern industry, especially in environments that demand extreme corrosion resistance and high-temperature performance. At DZX, we manufacture Platinum Iridium (Pt-Ir) tubes that conform to ASTM B684 standards—ensuring consistency, purity, and superior oxidation resistance across every production batch. Designed for precision, durability, and chemical stability, our Pt-Ir tubes are used in aerospace, medical, laboratory, and high-tech manufacturing industries where reliability matters most.
Material Analysis
The Platinum-Iridium alloy combines the noble qualities of platinum with the extreme hardness and wear resistance of iridium. Typically available in compositions like Pt-Ir 90/10 or Pt-Ir 80/20, the alloy exhibits a rare combination of toughness, ductility, and oxidation stability. Platinum provides excellent corrosion resistance and electrical conductivity, while iridium enhances mechanical strength and hardness—resulting in a tube capable of withstanding harsh operational environments.
The ASTM B684 standard ensures tight control over chemical composition, dimensional accuracy, and mechanical performance for platinum-based tubes, making them suitable for use in demanding electronic, medical, and industrial systems.
| Property | Pt-Ir 90/10 Tube | Pt-Ir 80/20 Tube | Nickel Alloy Tube | Stainless Steel Tube (316L) |
|---|
| Melting Point | ~1,800°C | ~1,820°C | ~1,400°C | ~1,500°C |
| Density | 21.5 g/cm³ | 21.7 g/cm³ | 8.9 g/cm³ | 7.9 g/cm³ |
| Corrosion Resistance | Excellent | Excellent | Moderate | Good |
| Oxidation Resistance | Superior | Superior | Limited | Moderate |
| Electrical Conductivity | High | High | Medium | Low |
| Strength at High Temp | Excellent | Exceptional | Moderate | Moderate |
| Workability | Good | Moderate | Good | Excellent |
| Standard | ASTM B684 | ASTM B684 | ASTM B163 | ASTM A213 |
Platinum-iridium’s exceptional resistance to oxidation even above 1000°C makes it ideal for high-vacuum or high-heat systems, outperforming conventional materials that degrade or lose stability under similar conditions.
Applications
At DZX, our Pt-Ir tubes are widely used in sectors that require longevity, reliability, and high chemical inertness.
Medical Equipment: Tubes for catheters, implants, and diagnostic instruments due to biocompatibility and sterilization stability.
Aerospace Systems: Components in jet engines, temperature sensors, and vacuum systems where heat resistance is critical.
Laboratory Instruments: Tubes for analytical devices and high-precision instruments exposed to aggressive chemicals or extreme heat.
Semiconductor Manufacturing: Used in wafer processing equipment due to their chemical purity and resistance to reactive gases.
Energy & Research Applications: Ideal for nuclear, hydrogen, and clean-energy systems that operate at extreme conditions.

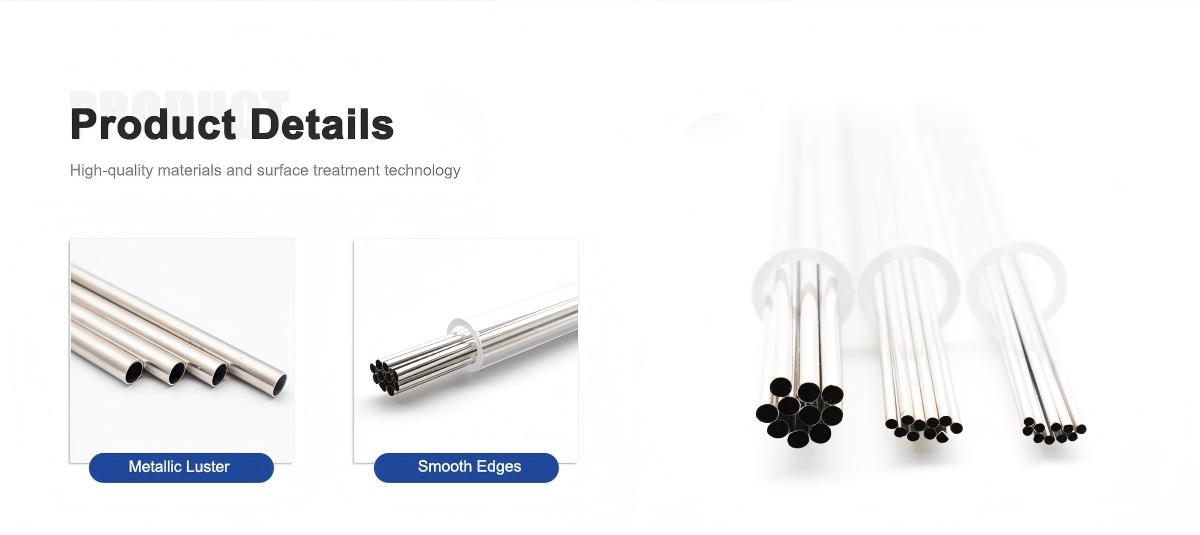

Each DZX Pt-Ir tube is drawn with precise dimensional control and polished to a flawless finish, ensuring smooth internal surfaces and uniform wall thickness—crucial for consistent flow, electrical conduction, or containment in specialized equipment.
Industry Trend Analysis
With the rapid development of aerospace, semiconductor, and medical industries, the demand for high-performance materials like Pt-Ir alloys has grown substantially. Engineers are shifting toward noble metal solutions that provide not only strength but also long-term stability in reactive or high-temperature environments.
Platinum-iridium alloys have become a material of choice for critical components because they ensure both mechanical reliability and chemical stability—two aspects traditional metals struggle to balance.
Moreover, global trends in miniaturization and precision manufacturing have further expanded the use of Pt-Ir tubing in micro-scale devices. Thin-walled Pt-Ir tubes are now essential for next-generation medical sensors, aerospace sensors, and analytical probes.
As sustainability becomes a key industrial focus, platinum-iridium’s recyclability also adds value. DZX actively participates in refining and recycling programs, helping clients recover precious materials and reduce environmental impact.
DZX Company Advantage
At DZX, our strength lies in precision control—from raw material melting to tube fabrication. Every stage of production is closely monitored to ensure consistency, purity, and mechanical performance.
Material Integrity: Our Pt-Ir alloys are melted under vacuum or inert gas conditions to ensure minimal contamination and perfect homogeneity.
Precision Fabrication: DZX employs advanced drawing and extrusion techniques, producing tubes with tight tolerances and smooth finishes for critical applications.
Customized Design: We offer tailor-made solutions for different compositions (90/10, 80/20, or custom blends), wall thicknesses, and diameters based on specific project requirements.
Stringent Testing: All tubes undergo chemical analysis, ultrasonic testing, mechanical strength assessment, and dimensional verification to meet ASTM B684 standards.
Global Expertise: DZX supplies Pt-Ir tubing to international aerospace and medical companies, ensuring compliance with international material specifications and traceability requirements.
Technical Support: Our team works directly with engineers to optimize material selection and design parameters for complex systems.
Through continuous improvement and technological innovation, DZX has earned a reputation for producing Pt-Ir tubes that perform consistently in the harshest environments.
About Us:
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications. For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
FAQs
What is ASTM B684?
ASTM B684 is the standard specification for platinum and platinum-alloy tubes, ensuring material purity, strength, and corrosion resistance.
What are the main benefits of Pt-Ir tubes over nickel or stainless steel tubes?
They offer superior oxidation resistance, high-temperature strength, and outstanding corrosion protection in aggressive or vacuum environments.
What compositions are available at DZX?
We typically supply Pt-Ir 90/10 and 80/20, but custom ratios are available depending on application needs.
Are Pt-Ir tubes suitable for medical applications?
Yes. They are biocompatible, non-reactive, and can withstand sterilization processes without degradation.
What industries use DZX’s Pt-Ir tubes most frequently?
Aerospace, medical, semiconductor, laboratory, and high-energy research sectors.
Can DZX provide customized tube dimensions?
Absolutely. We can deliver tubes in specific diameters, lengths, and wall thicknesses according to client drawings.
How does DZX ensure consistent quality across batches?
We implement rigorous process control, including spectrographic analysis, microstructural inspection, and precision dimensional testing.
Do Pt-Ir tubes resist oxidation at high temperatures?
Yes. They maintain structural integrity and resist oxidation up to 1200°C and beyond, far outperforming most engineering metals.
Conclusion
The Platinum Iridium Tube ASTM B684 stands as a benchmark for durability, oxidation resistance, and performance in advanced industries. It is the material of choice for engineers working on systems that must endure extreme heat, pressure, and chemical exposure.
At DZX, we’ve built our reputation on precision. Our Pt-Ir tubes are more than just components—they’re enablers of reliability, supporting critical innovations in aerospace, medicine, and scientific research. Each tube is a reflection of our commitment to material excellence and engineering precision.
As industries evolve, DZX continues to innovate—refining processes, improving sustainability, and advancing noble metal technology. Whether for cutting-edge medical devices or next-generation aerospace systems, DZX’s platinum-iridium tubes deliver the quality and performance that engineers can trust.
